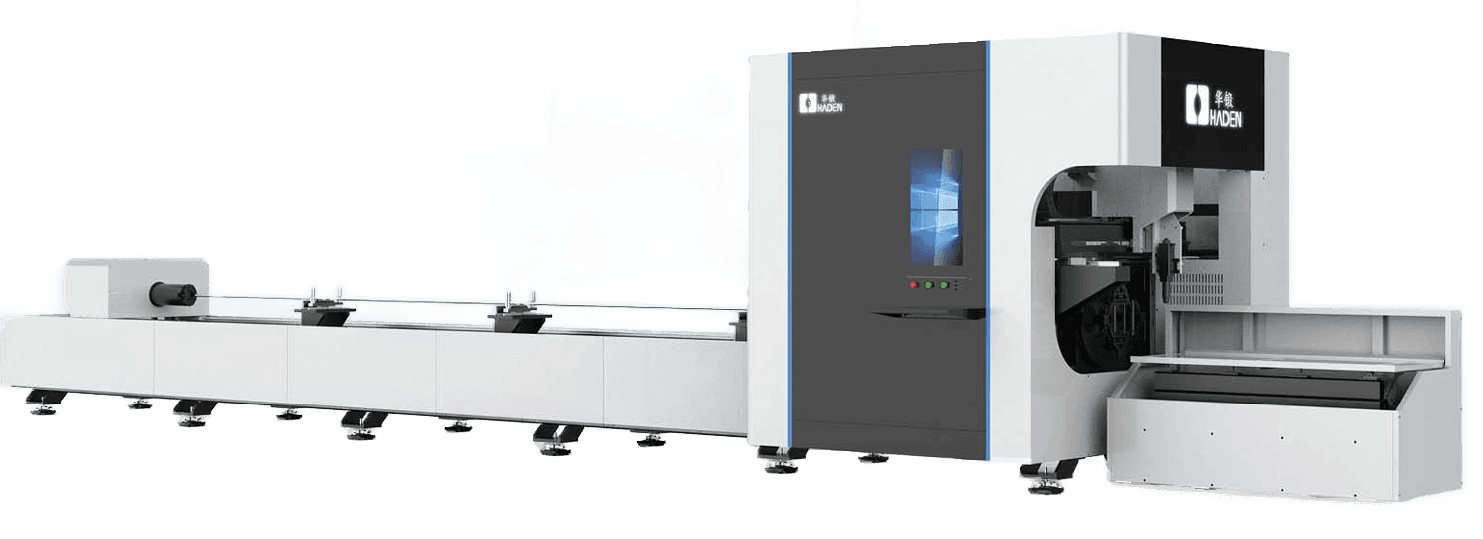

Two-chuck servo-driven laser pipe cutting machine
HD-SR SERIES
TWO CHUCK ADVANCED LASER PIPE CUTTING MACHINE
Mechanical overview
- The bed is made of steel plates welded together, which has high rigidity, tempering treatment, vibration elimination of internal stress, no deformation, high precision and good stability.
- Transverse beam: gantry structure, which is better and ensures a higher acceleration.
- Guideway: H-grade linear guideway: high precision, fast speed;
- Rack and pinion: precision helical rack and pinion: high precision, fast speed.
- Servo-controlled material support with high precision and fast vertical movement:
- Standard front support 1.5 m
- The chuck uses a high-precision chuck with high precision and speed.
