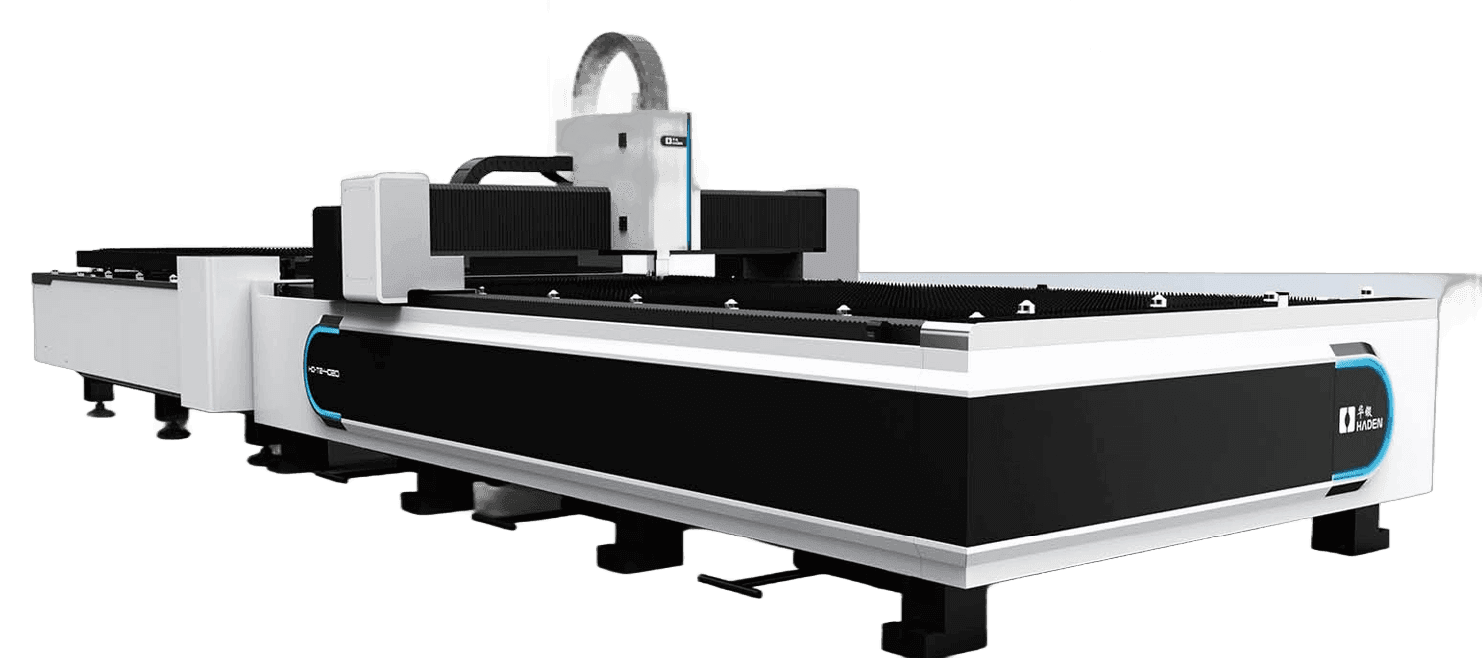

Exchange platform fiber laser cutting machine
T2 SERIES PLATFORM
PLATFORM FIBER LASER CUTTING MACHINE
Mechanical overview
- Bed: The ductile iron structure has high rigidity, is not deformed, has good vibration damping properties, high precision and good stability.
- Beam: cast aluminum alloy, lightweight, ensures acceleration
- Guideway: H-grade linear guideway: high precision, fast speed
- Rack and pinion: precision helical rack and pinion: high precision, fast
Cutting width 1.5-2.5m
Cutting length 3.0-6.0m
material thickness 0.5-35mm
blank line speed reached120m/min.
Acceleration of 2.0G
Positioning accuracy: +/-0.05mm/m
Repeated positioning accuracy: +/-0.03mm/m

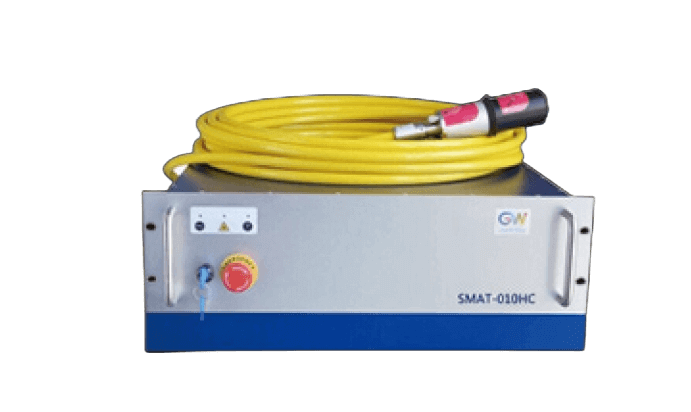

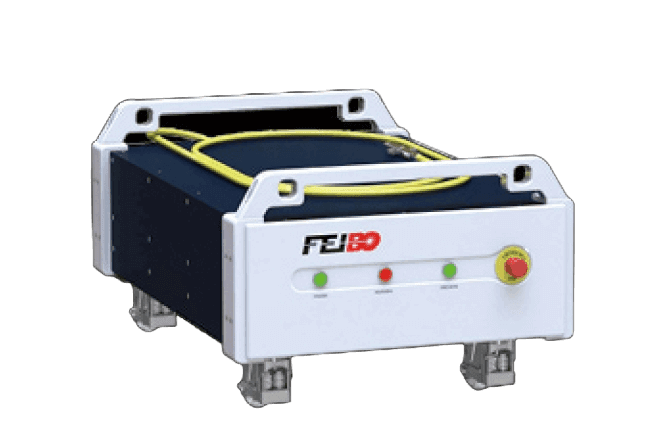

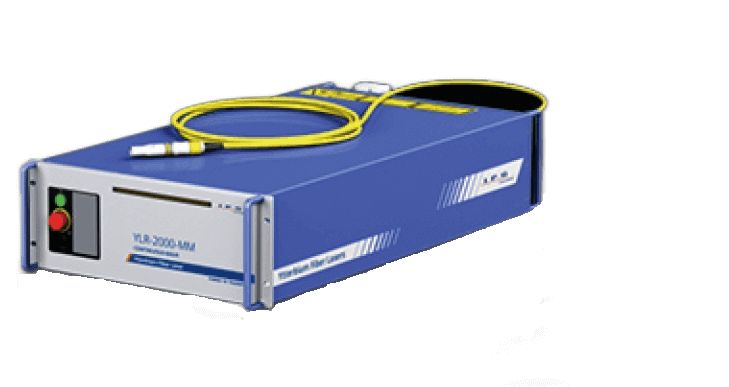

Fiber laser: MAX,Raycus,IPG,N-light
Laser power: 500W-1200W
1. Laser power range: 500W, 700W, 1000W, 1200W, 1500W, 2000W, 3000W, 4000W, 6000W, 8000W, 10000W
2. High beam quality, fully enclosed flexible light path, maintenance-free light path
3.100,000 hours of lifespan
4. Small size, light weight, low energy consumption

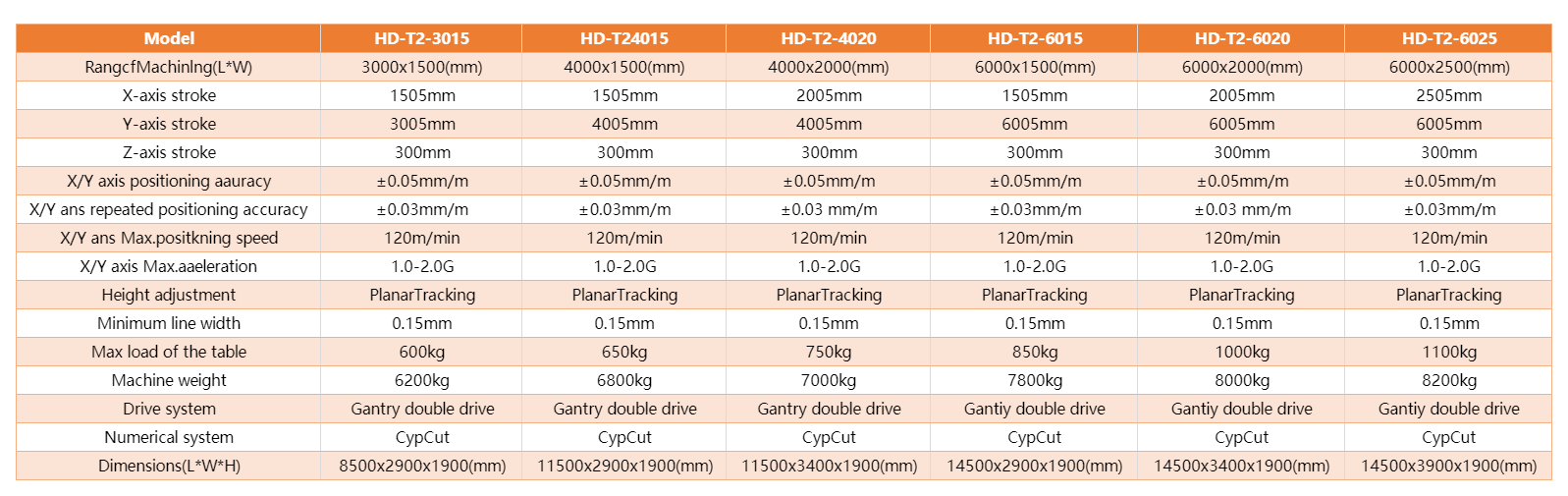

Model parameters：
