Standard fibre laser cutting machine
T1 SERIES STANDARD
STANDARD FIBER LASER CUTTING MACHINE
Mechanical overview
- Bed: Welded steel pipe with tempered history, which has high toughness, high precision and good stability.
- Transverse beam: Lightweight, rigid, low weight-bearing capacity, ensures acceleration.
- Guide rail: H-grade linear guide: high precision, fast speed;
- Rack and pinion: precision helical rack and pinion: high precision, fast speed.
The special reducer for the cutting machine has excellent features such as high precision,
super quiet, long life, no oil leakage, and large
connection.
Maximum speed increased to 6,000 rpm. Reduced temperature rise and increased efficiency.
Peak torque increased to 350%.
Taiwan YYC ultra-high precision rack (UHPP) has a five-level accuracy and can be
perfectly used in laser cutting machines. It can provide rigid support for hardened helical gears and ground helical
gears, making the load drive compact and effectively reducing
starting and excitation torque.
It has the characteristic of equal load in four directions and the function of automatic
self-alignment, which can absorb the
assembly errors of the mounting surface and achieve the high precision requirement.
The concepts of high speed, high load, high rigidity and high
precision have become the future development trend of products worldwide.
Cutting width 1.5-2.5m
Cutting length 3.0-8.0m
Cutting thickness 0.5-35mm
The blanking speed reaches 120m/min.
Acceleration of 1.5G
Positioning accuracy: +/-0.05mm/m
Repeated positioning accuracy: +/-0.03mm/m
Fiber laser: Raycus, FEIBO, IPG, GW
Laser power 1000w-8000w
Panasonic, Yaskawa

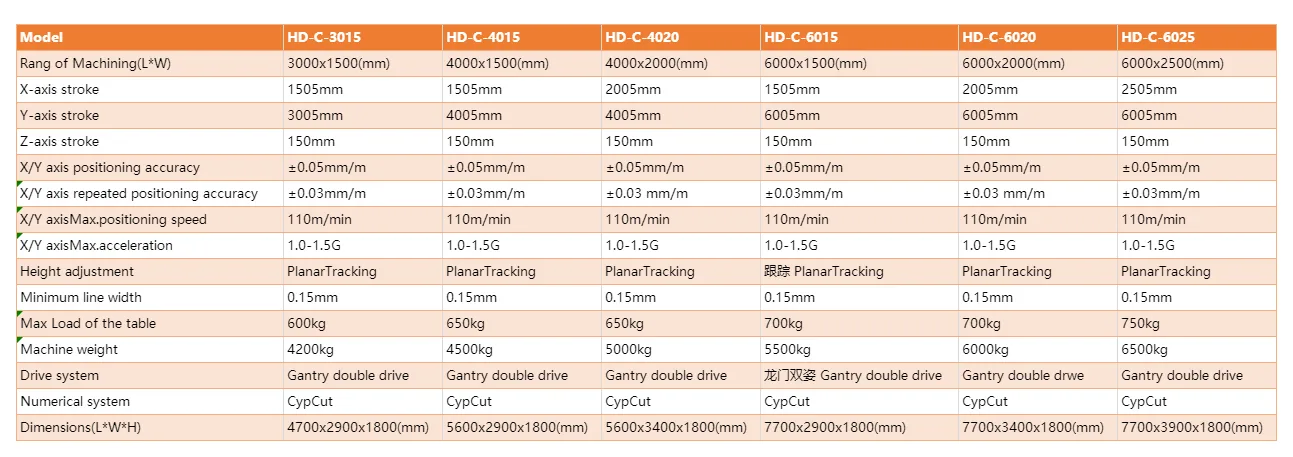

Model parameters：
