HADEN

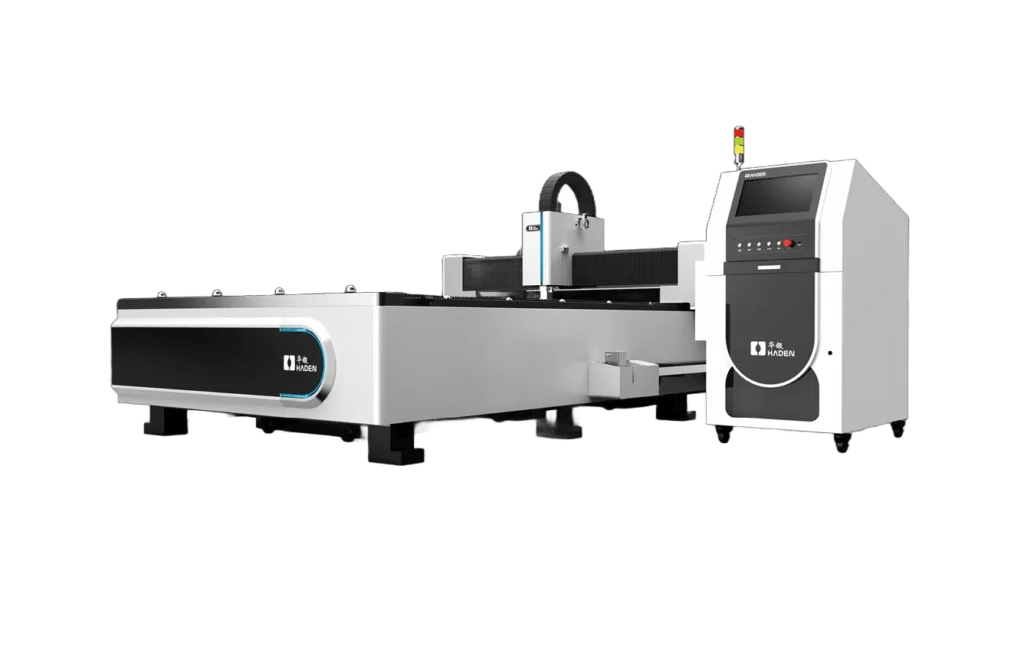

High-end fiber laser cutting machine
T1 SERIES HIGH-END
HIGH-END FIBER LASER CUTTING MACHINE
Mechanical overview
- Bed: Ductile cast iron structure with high rigidity, no deformation, good vibration damping performance, high precision and good stability.
- Beam: cast aluminum alloy, light weight, to ensure acceleration
- Guideway: H-class linear guideway: high precision, high speed
- Rack and pinion Precision helical rack and pinion: high precision and speed
product feature:

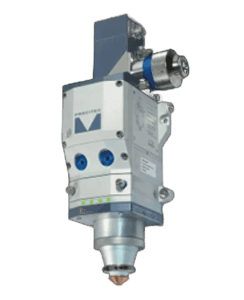

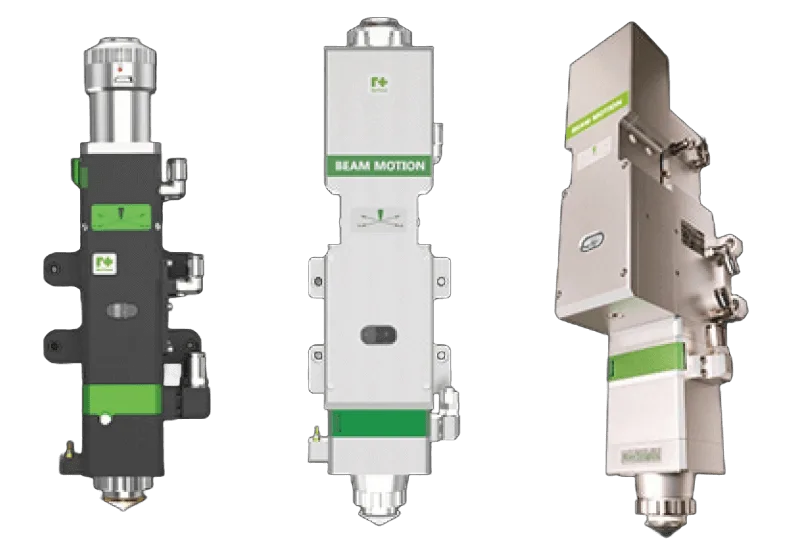

The cutting head adopts the original German PRECITEC or Swiss RAY TOOLS high-precision fiber laser cutting head with capacitive non-contact highly automatic tracking system. Because of the physical characteristics of the fiber laser the cutting head comes standard with a 5-inch focusing mirror can be used for cutting plates of different thicknesses. Eliminates the need to replace different focusing lens cavities.
Complete system including linear drive, cutting & welding system, controller and collimation unit
– Patented distance sensor with HU-E contact
– Generates an error signal in case of bumping, cable breakage or out of tolerance of measuring area
– Easy connection to household connections (top)
– Integrated bump detection function
– Water-cooling system with optical components and fiber-optic socket – All water guiding parts are made of stainless steel Water-cooling system for optical components and fiber optic sockets
– All water-conducting parts are made of stainless steel
-Integrated collimation unit – Easy to cut and weld functionality conversion
product feature:
1. Optimized optical configuration and smooth and efficient airflow design
2. Rotating focus adjustment, fine and flexible adjustment, adjustable range 10-15M M , adjustment accuracy 0.05MM ;
3. A protective lens has been added to the collimating lens, which can effectively prevent damage caused by dust falling into the collimating lens;
4. The drawer-type mirror holder is adopted, which makes it quick and easy to replace the protective lens, collimating lens and focusing lens
5. The nozzle assembly has built-in annular air cooling and side blowing structure, which is conducive to cutting high-reflective materials and sputtering explosion-proof holes in thick plates.
6. The collimating mirror and focusing mirror have a water-cooled structure, which allows them to withstand a maximum power of 6KW.
7. Both the collimating mirror and focusing mirror can use composite lenses to obtain the best optical quality and cutting effect.
8. It has a variety of fiber optic interfaces and can be adapted to various fiber lasers.
Cutting width 1.5-2.5m
Cutting length 3.0-6.0m
Cutting thickness 0.5-35mm
blank line speed reached 120m/min.
Acceleration of 2.0G
Positioning accuracy: +/-0.05mm/m
Repeated positioning accuracy: +/-0.03mm/m

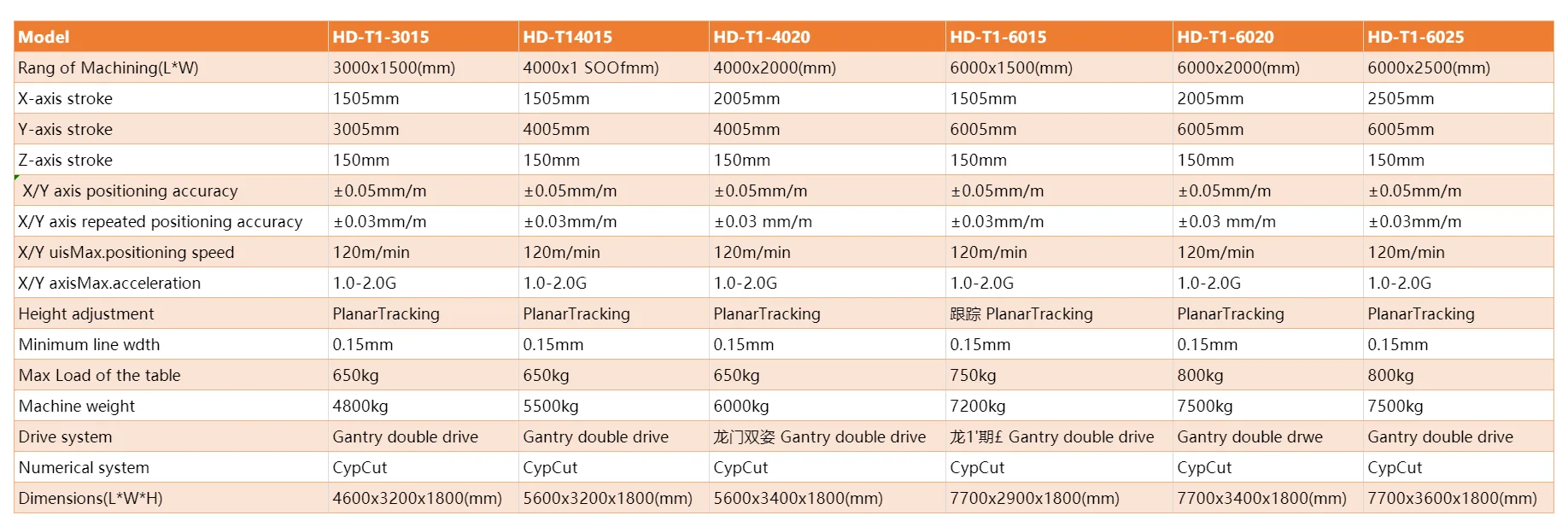

Model parameters：
