HADEN

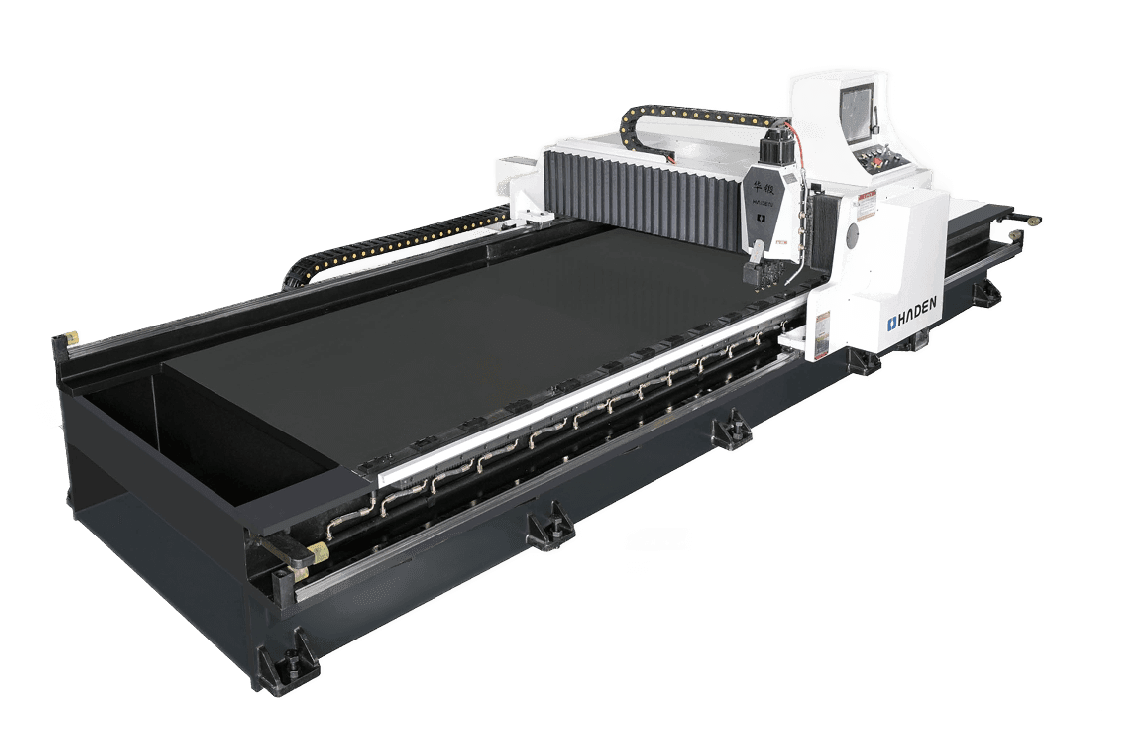

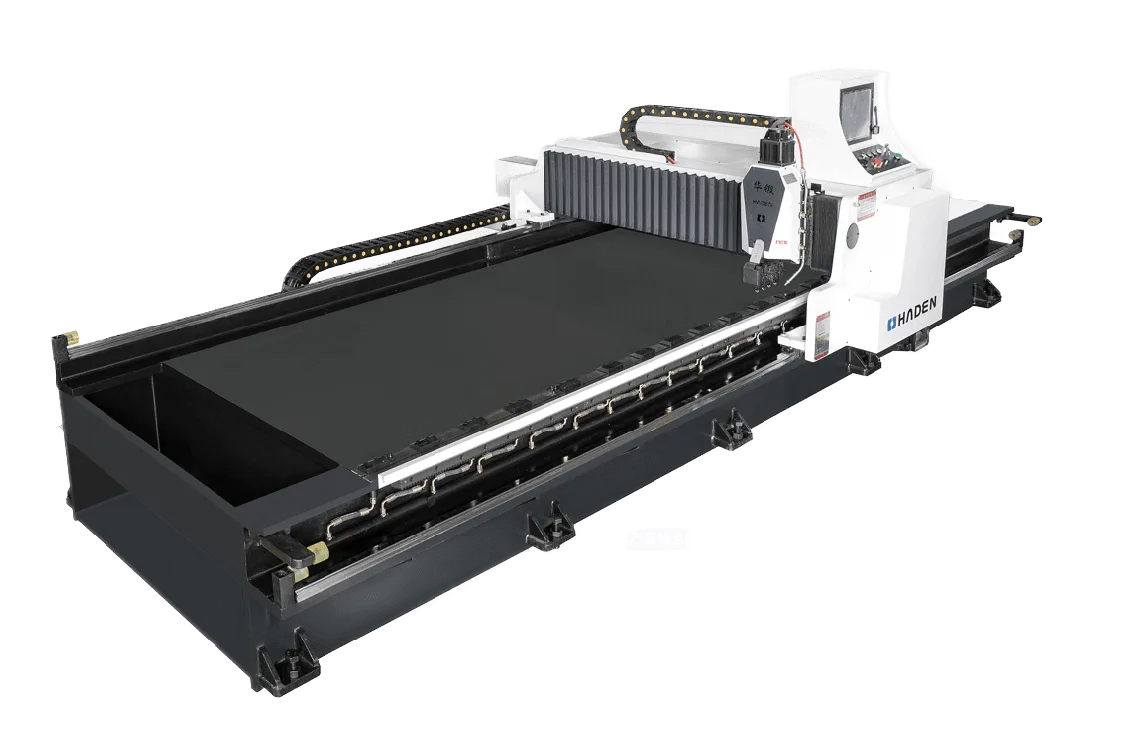

Full servo CNC gantry grooving machine
FULL SGRVO CNC GANTRY HD- SLOTTING MACHINE
HD-BL Series
Mechanical overview
- Gantry type, easy loading and unloading. Air-cooling without environmental pollution, 3+1 axis CNC full servo control, to achieve fully automatic running processing, improve the accuracy of groove planing processing.
- Adopting imported hydraulic control system as power, high pressure, reliable tightening force and low noise, low energy consumption.
- Adopting box grinding gears, 45 steel forgings all over the quality of the helical rack and pinion guide transmission, moving speed can be adjusted by frequency conversion, the cutting process is smooth.
- CNC programme design is reasonable, easy to grasp, only need to enter the machining size inch can be completed.
- Depending on the material, the processing speed can be adjusted with the knob, which is easy to be operated by operators.

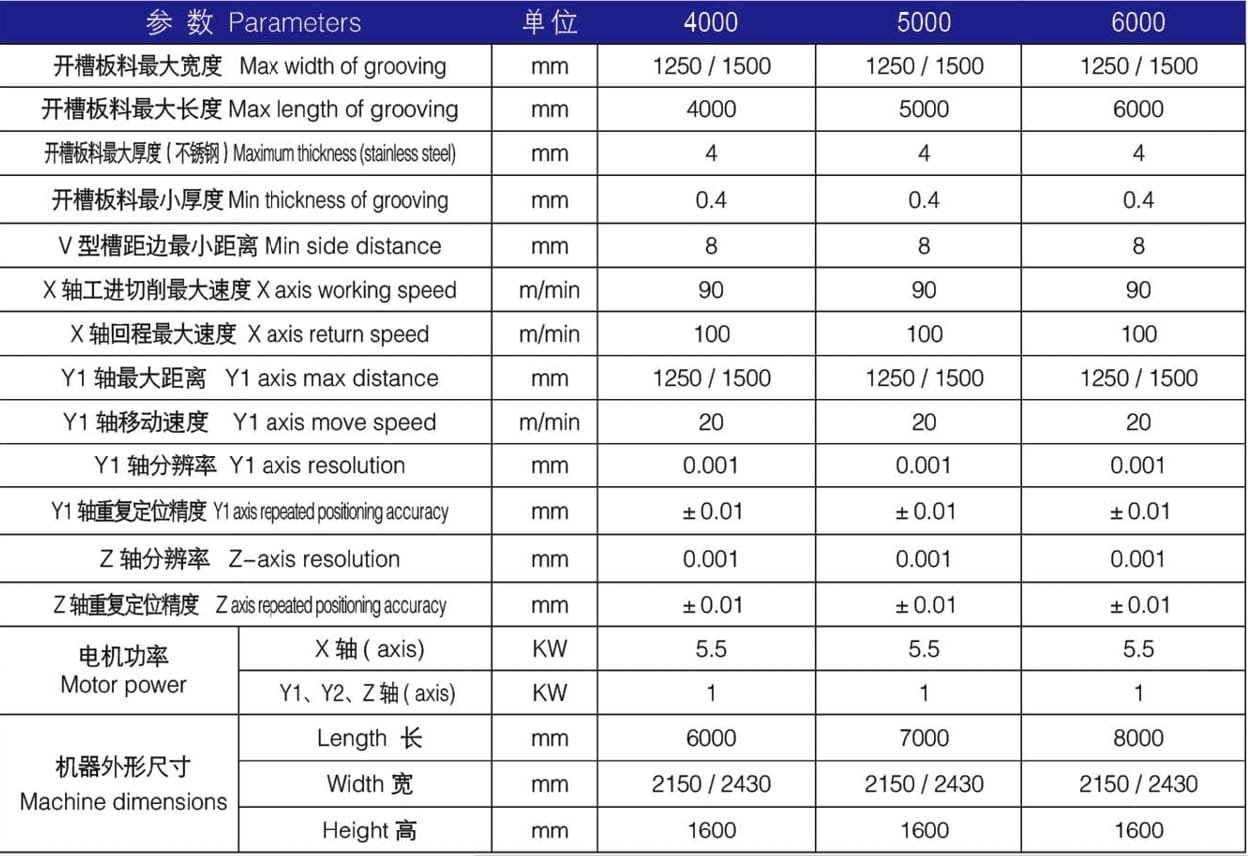

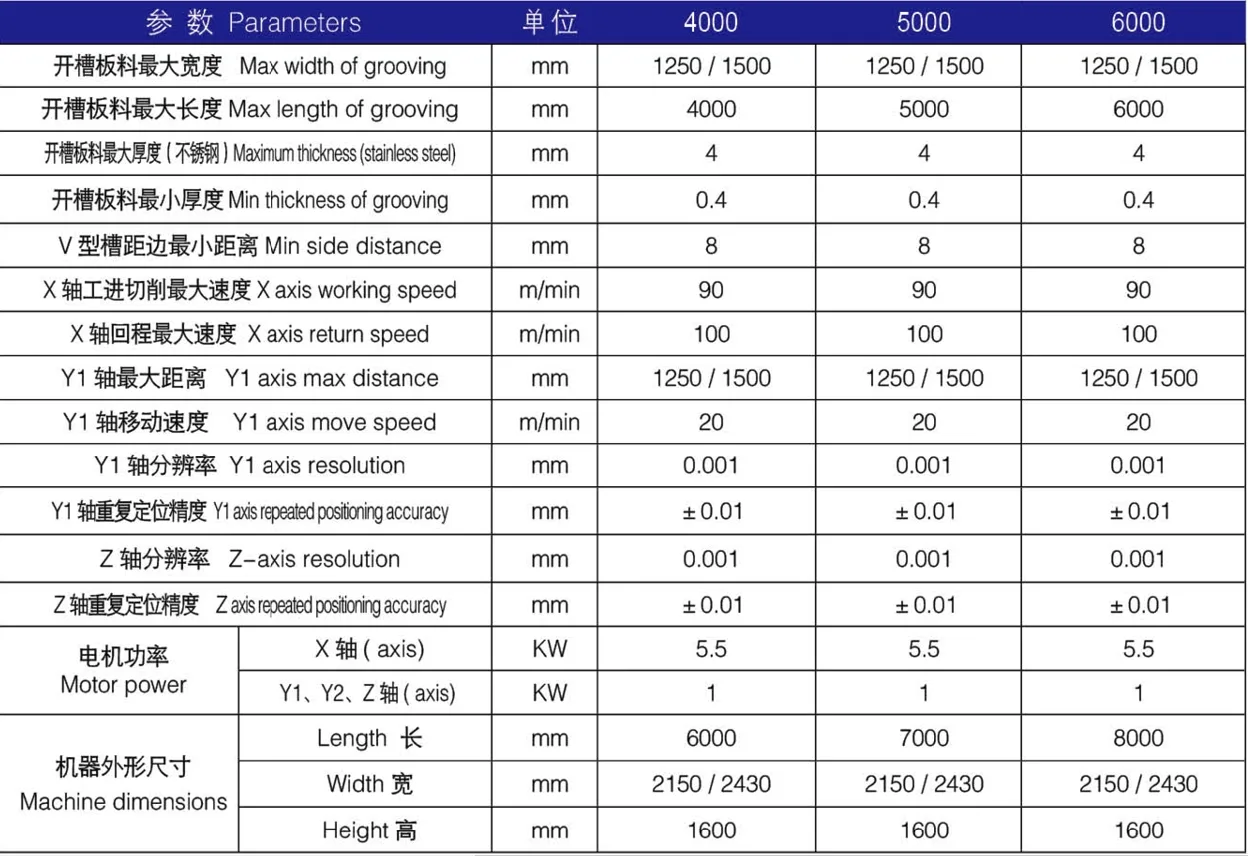

Model parameters：
