HADEN

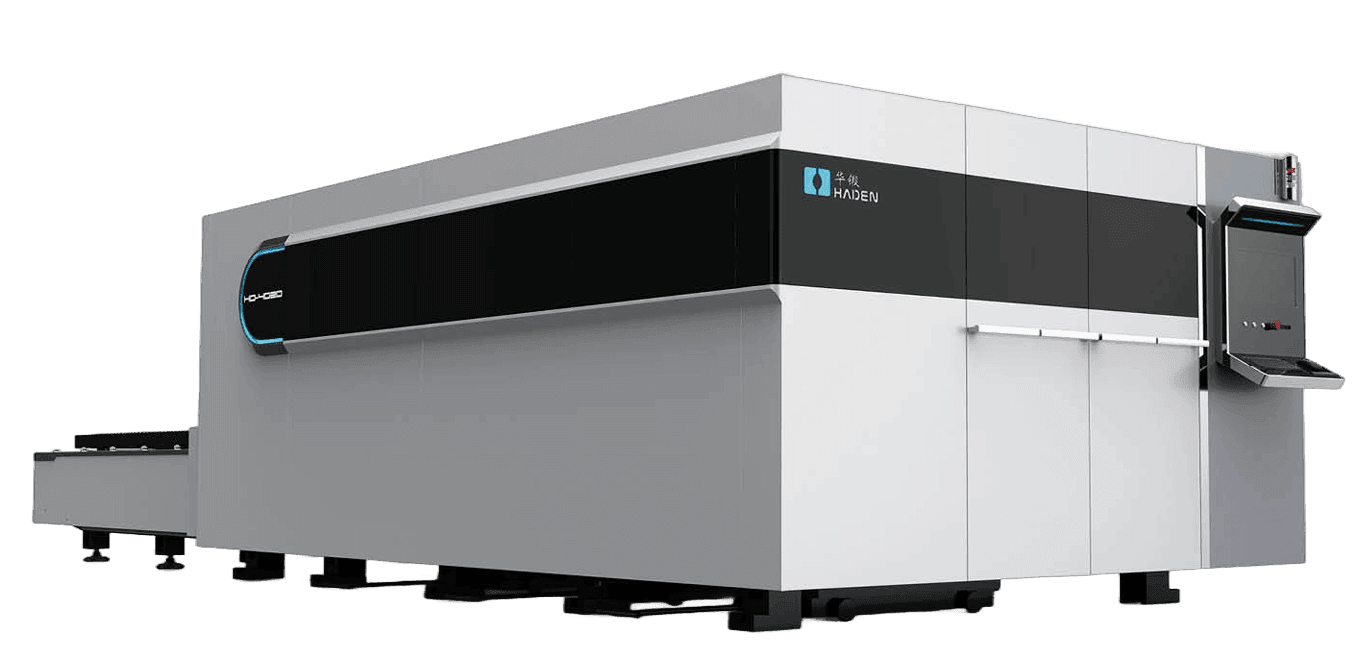

Large-envelope fiber laser cutting machine
T3 SERIES WHOLE SURROUNDING
WHOLE SURROUNDINGFIBER LASER CUTTING MACHINE
Mechanical overview
- Bed: Welded steel plate, tempered bed, with high mesh wins, no deformation, high precision and good stability
- Crossbeam: The aluminum alloy cast crossbeam is lightweight and ensures acceleration.
- Linear guide: high precision, fast
- Rack and pinion: precision helical rack and pinion: high precision, fast

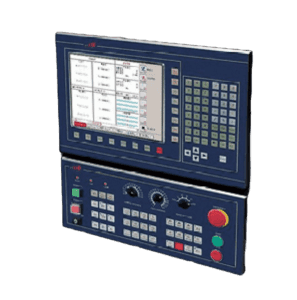

It represents the most professional CNC system for laser processing. Compact and modular, the PA8000 series CNC satisfies users’ needs for a high-performance CNC system with a good price/performance ratio.

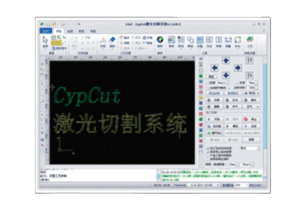

Cypcut is an excellent laser cutting control system that integrates file reading, design output and processing control. A single software package can complete the entire process from design to processing. The software provides a wealth of laser
cutting process parameters, flexible nesting and toolpath editing capabilities, including functions such as lead-in and lead-out, bridging, common edges, spot distribution, curve smoothing, split and merge, automatic day/night distinction, etc. It supports IPG, SPLJK, Raycus and other fiber lasers, and supports CO2, YAG, and provides real-time power adjustment with PWM along with the beam, and a process to prevent strong radial ripples during progressive piercing.
Cutting width 1.5-3.5m
Cutting length 3.0-13.0m
Cutting thickness 0.5-50mm
blank line speed reached 120m/min.
Acceleration of 1.5G
Positioning accuracy: +/-0.05mm/m
Repeated positioning accuracy: +/-0.03mm/m
Laser power range: 1500W~80000W
High beam quality, fully enclosed flexible light path, maintenance-free light path
50,000 hours of life
Small size, light weight, low energy consumption

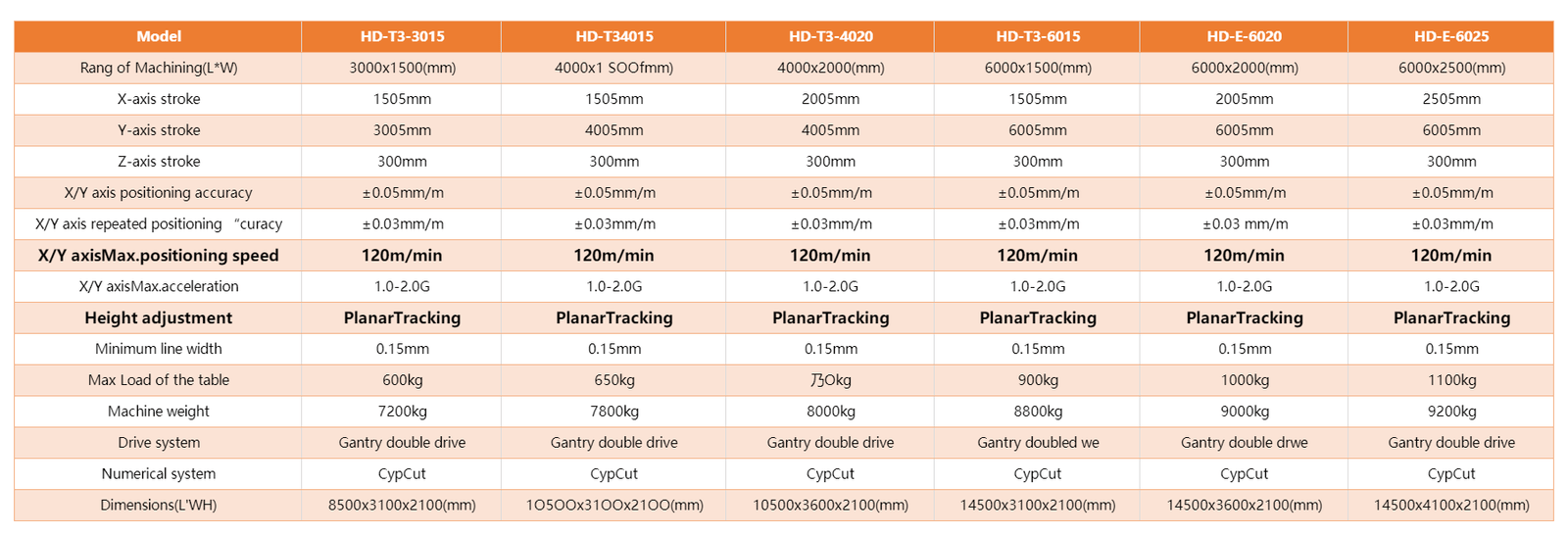

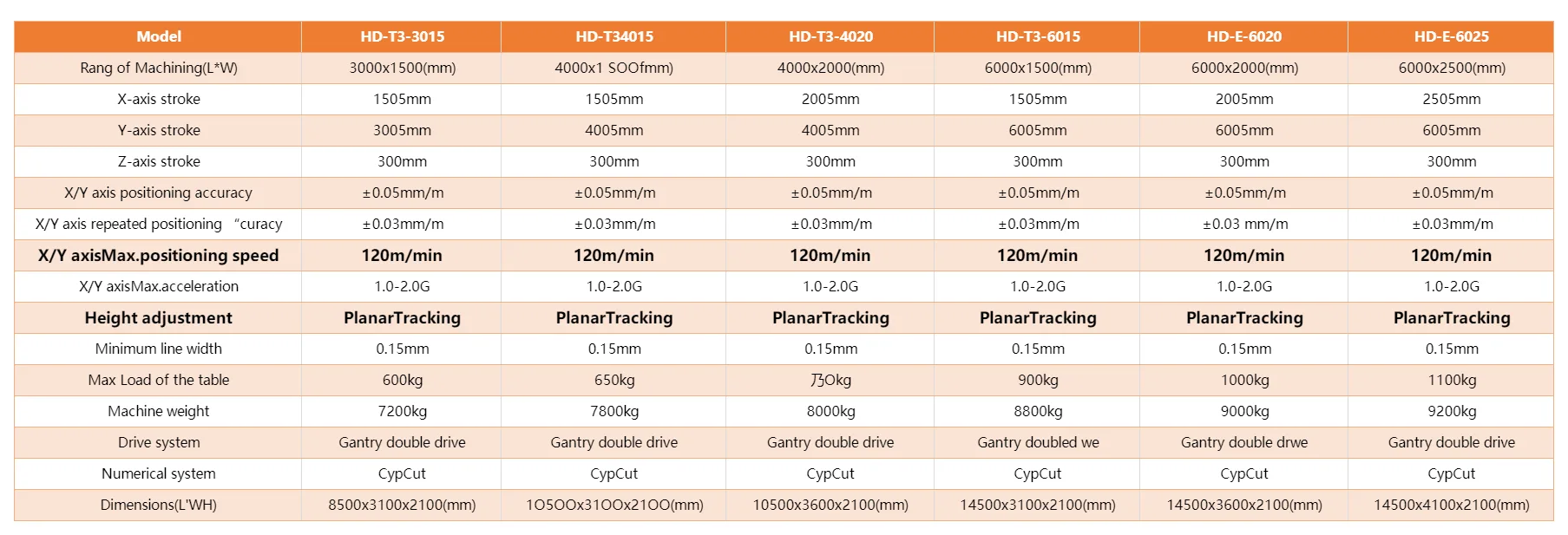

Model parameters：
