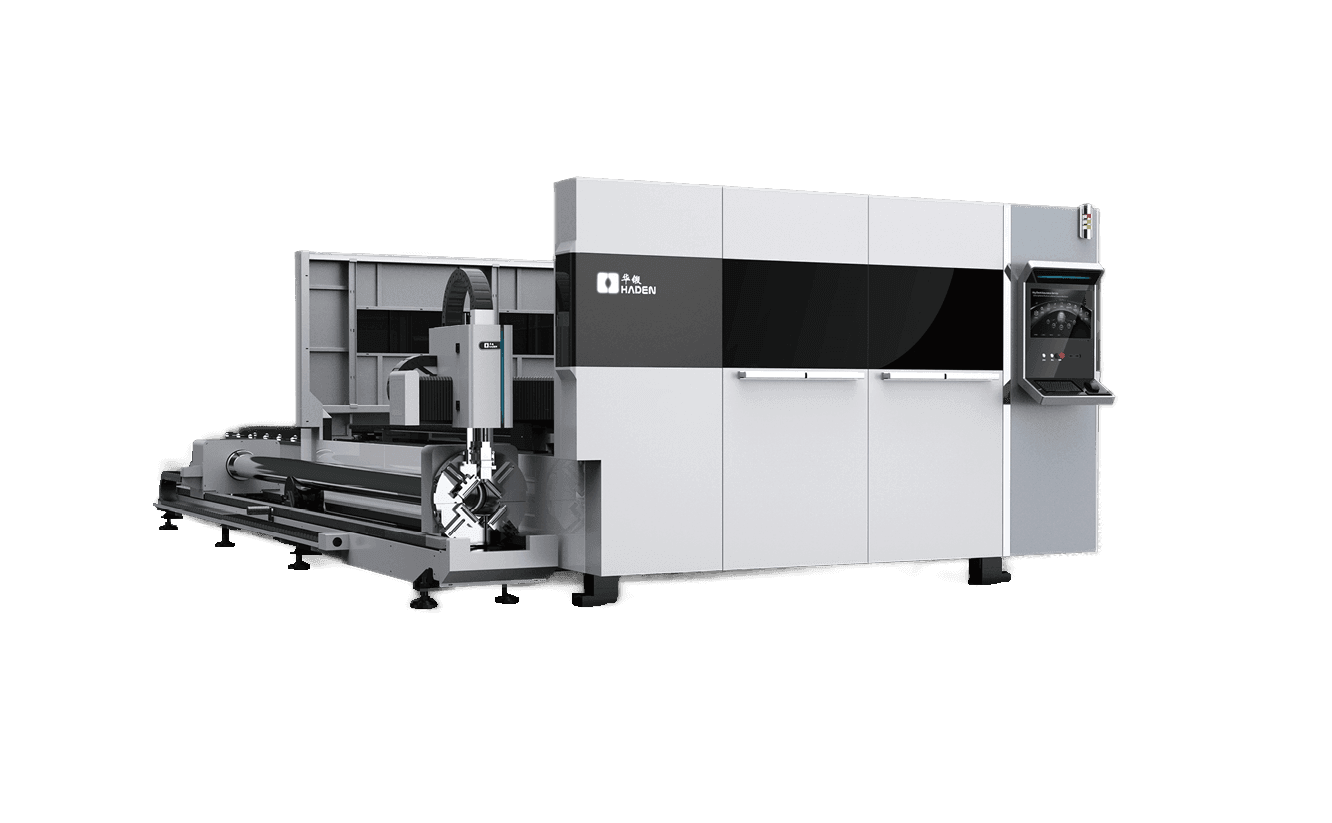

Fully protected switchboard panel with integrated laser cutting machine
T3R SERIES FULLY PROTECTED SWITCHBOARD PANEL TUBE
FULLY PROTECTED SWITCHBOARD PANEL TUBE LASER CUTTING MACHINE
Mechanical overview
- Bed: The ductile iron structure has high rigidity, is not deformed, has good vibration damping properties, high precision and good stability.
- Beam: cast aluminum alloy, light weight, ensures acceleration
- Guideway: H-grade linear guideway: high precision, fast
- Rack and pinion: precision helical rack and pinion: high precision, fast
The cantilevered beam is made of a single piece of cast aluminum alloy, which not only ensures high strength but also reduces the weight of the machine. Reducing the inertia of the entire machine during high-speed operation ensures high acceleration.
The bed is made of ductile iron and is precision-machined in a single operation using a large machining center. This results in a high degree of rigidity, precision and stability.
Cutting width 1.5-2.5m
Cutting length 3.0-6.0m
material thickness 0.5-35mm
The blanking speed reaches 120m/min.
Acceleration of 2.0G
Positioning accuracy: +/-0.05mm/m
Repeated positioning accuracy: +/-0.03mm/m
Fiber laser: MAX,Raycus,IPG,N-light
Laser power: 500W-1200W
Pipe cutting diameter: round pipe 20-300mm, square pipe 20-210mm
Chuck locking method: 1. manual, 2. automatic

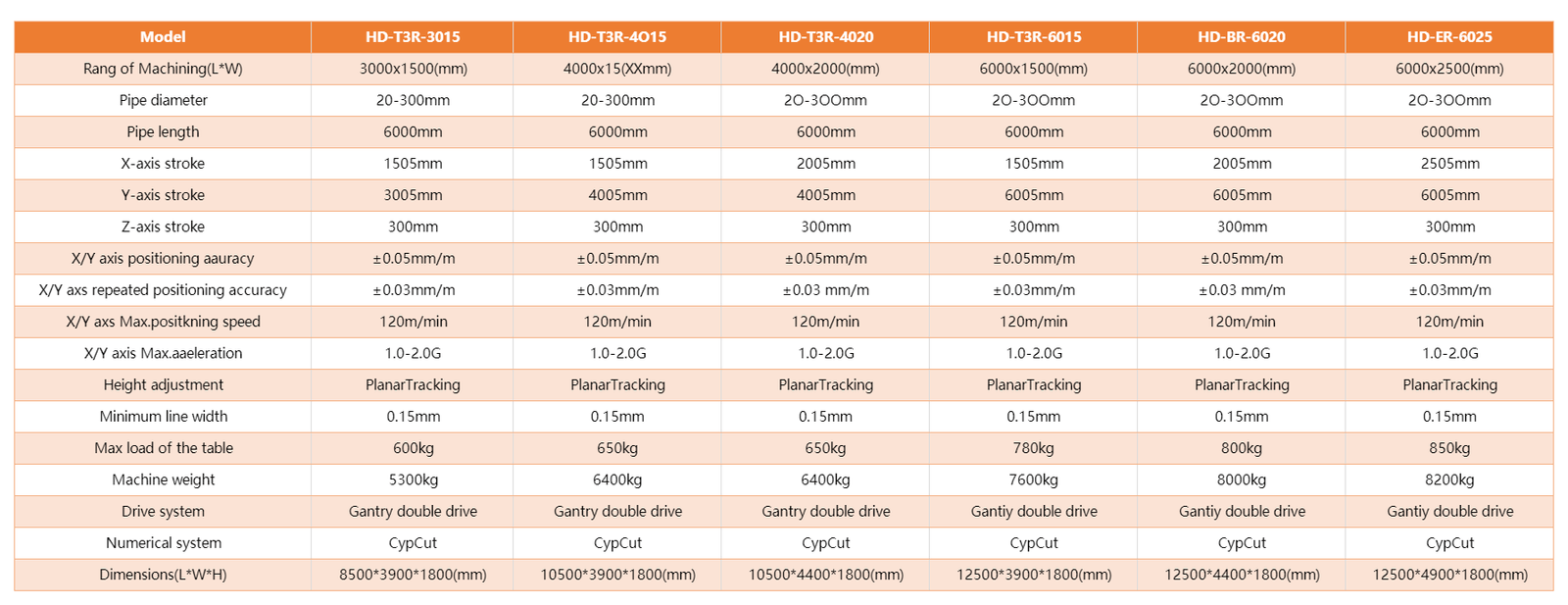

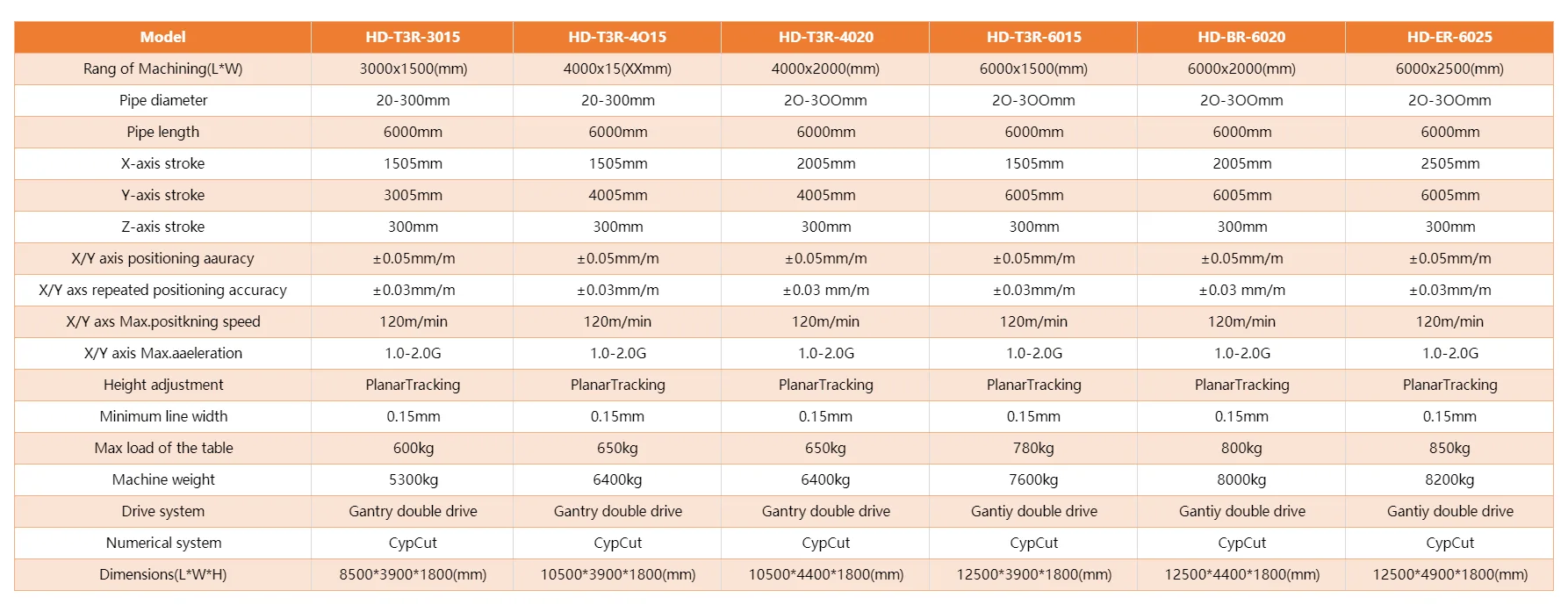

Model parameters：
