HADEN
Electro-hydraulic servo CNC bending machine
HDP SERIES ELECTRO-HYDRAULIC SERVO
ELECTRO-HYDRAULIC SERVO CNC PRESS BRAKE
Mechanical overview
- Energy-saving and high-efficiency bending machine
- The main motor is equipped with imported brand motors as standard; or the main motor is equipped with servo motors, which is energy-saving and power-saving.
- Mechanical compensating table guarantees precision in the machining of thin plates
- Large lead silent type rear gear plus German Rexroth series high-speed hydraulic system, greater efficiency
- Step-type precision stop fingers provide customers with a greater range of machining
- The standard 4 gear fingers can be operated by 2 workers at the same time to maximise efficiency.
- DA52S, DA53T, DA58T, DA69T, and DA69T Dutch DELEM CNC systems are available.
- High stability, can be expanded to automate bending

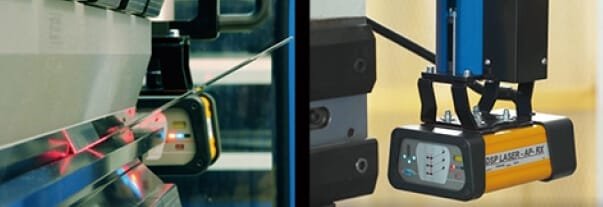

Laser protection device (optional)
Imported LaserSafe laser protection device, a world-renowned brand, fully compliant with EU CE standards

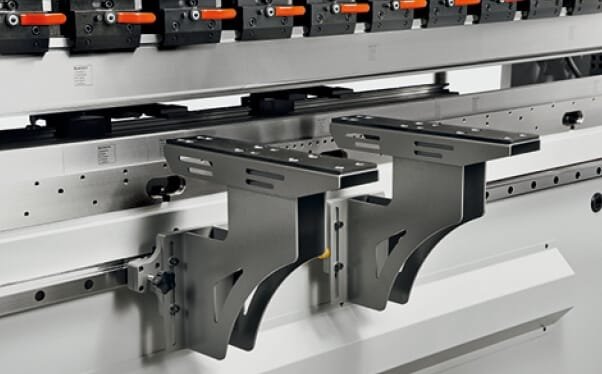

Pneumatic front support (optional)
A lifting front support specially designed for workpieces in the folding process sets the support plane according to the working position of the mould.

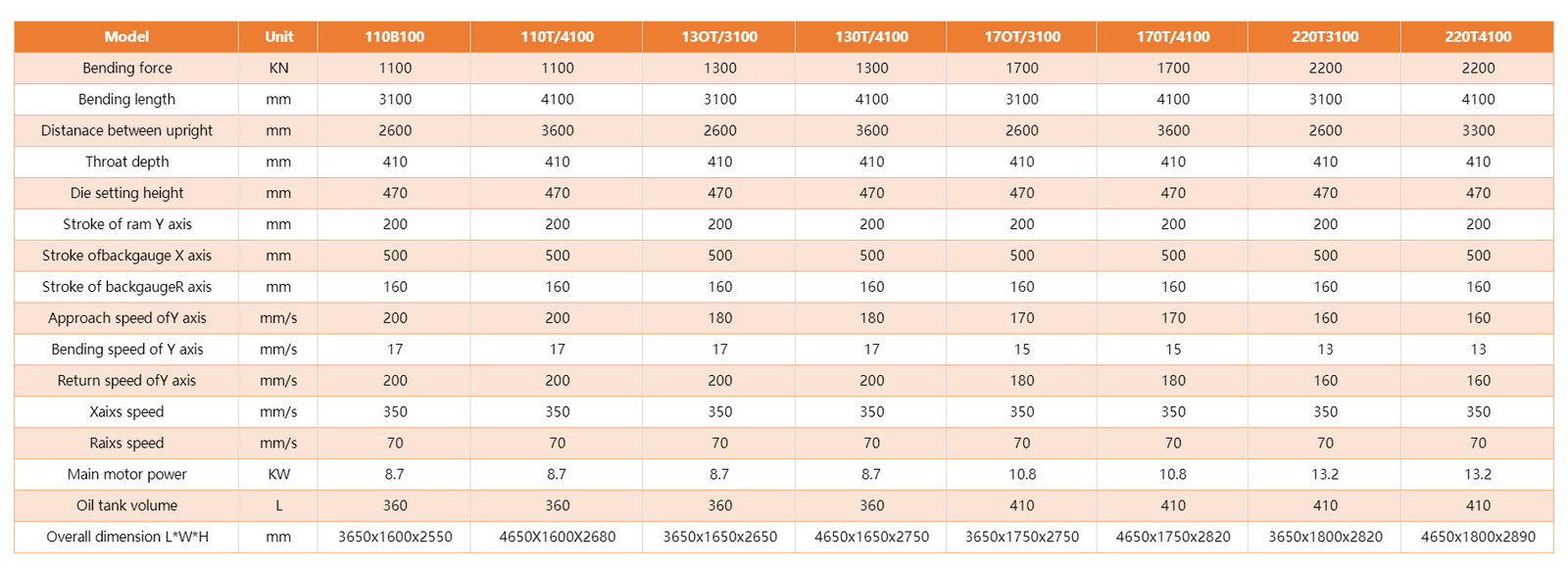

Model parameters：
